Manufacturer-grade hydraulic pile driving equipment for bridges, ports, marine works, industrial foundations, sheet piles and high-rise construction
Hydraulic piling hammers are heavy-duty foundation construction machines used to drive steel piles, concrete piles, pipe piles and sheet piles into the ground with controlled impact energy. Our HPH series is designed for contractors and foundation specialists who need efficient, reliable and durable pile driving equipment from a true manufacturer.
With advanced hydraulic control, robust construction and adaptable energy output, HPH series hammers deliver consistent driving performance across varied soil conditions while helping reduce operating cost, improve safety and support modern project documentation requirements.
Complete technical parameters for all HPH series hydraulic piling hammers
| Model | Drop Weight (t) | Impact Energy (kJ) | Total Height* (m) | Working Mass* (t) | Pressure (MPa) | Working Flow (L/min) | Guide Rail Center (mm) | Lifting Method |
|---|---|---|---|---|---|---|---|---|
| HH380 | 25.0 | 380 | 6.4 | 34.5 | 28 | ~1200 | 600 | Single cylinder |

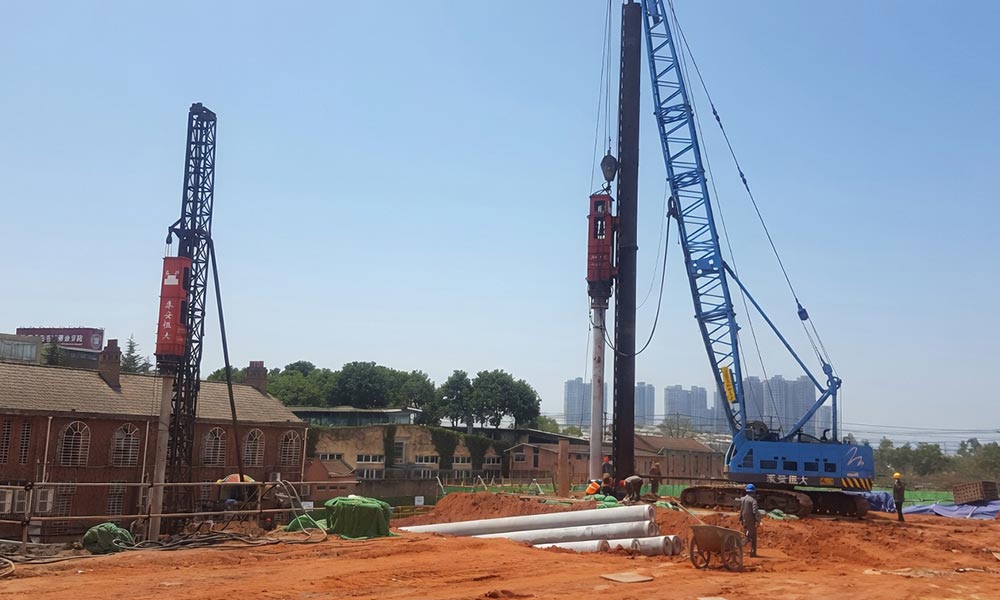

| HH300 | 20.0 | 300 | 7.0 | 27.0 | 28 | ~700 | 600 | Single cylinder |
| HH270 | 18.0 | 270 | 7.0 | 24.8 | 26 | ~700 | 600 | Single cylinder |

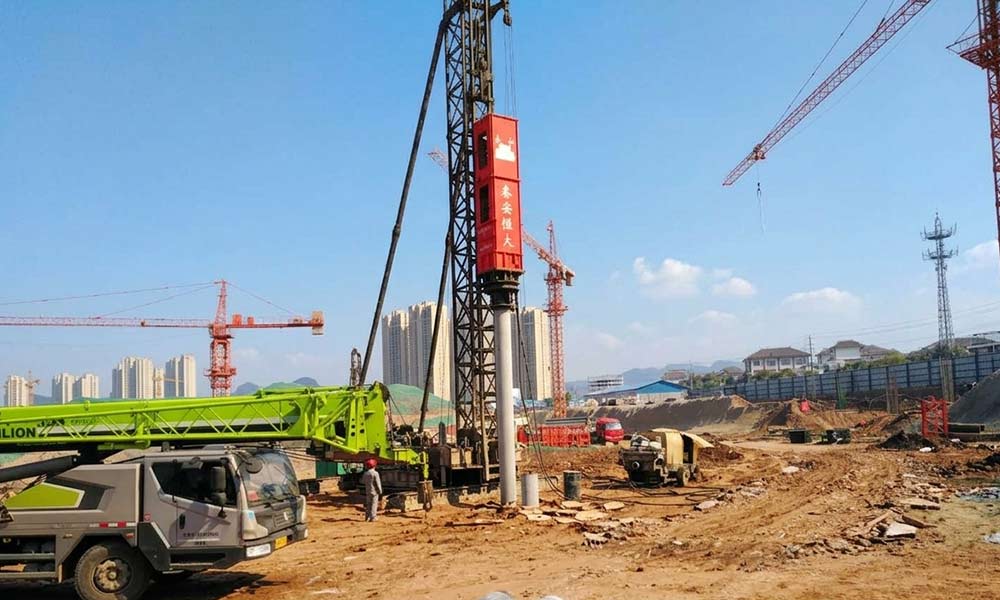

| HH240 | 16.0 | 240 | 6.3 | 22.7 | 26 | ~700 | 600 | Single cylinder |
| HH210 | 14.0 | 210 | 6.1 | 20.7 | 23 | ~600 | 330/600 | Single cylinder |
| HH180 | 12.0 | 180 | 6.1 | 18.7 | 23 | ~600 | 330/600 | Single cylinder |

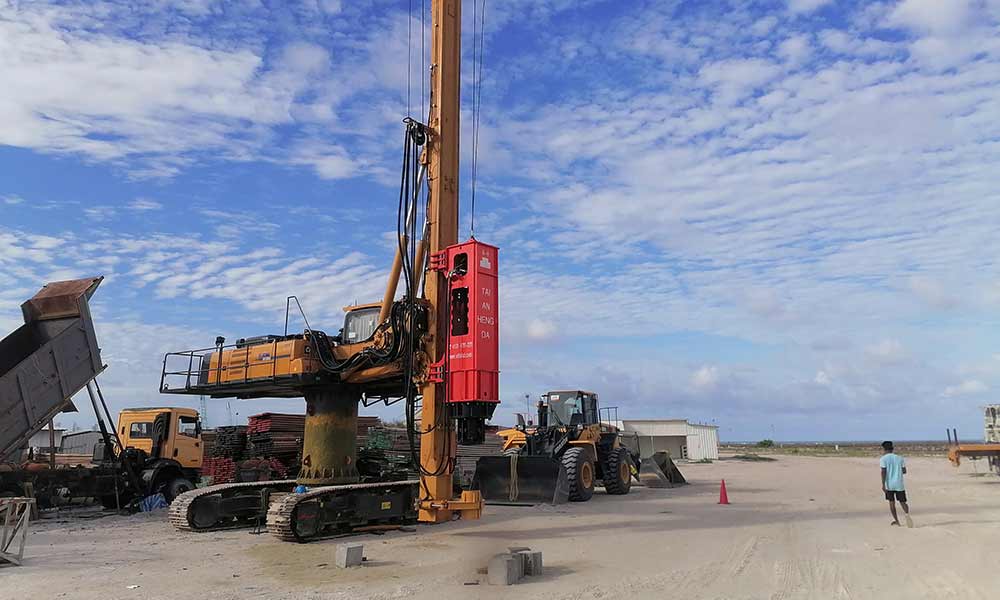

| HH150 | 10.0 | 150 | 5.5 | 16.5 | 23 | ~600 | 330/600 | Single cylinder |

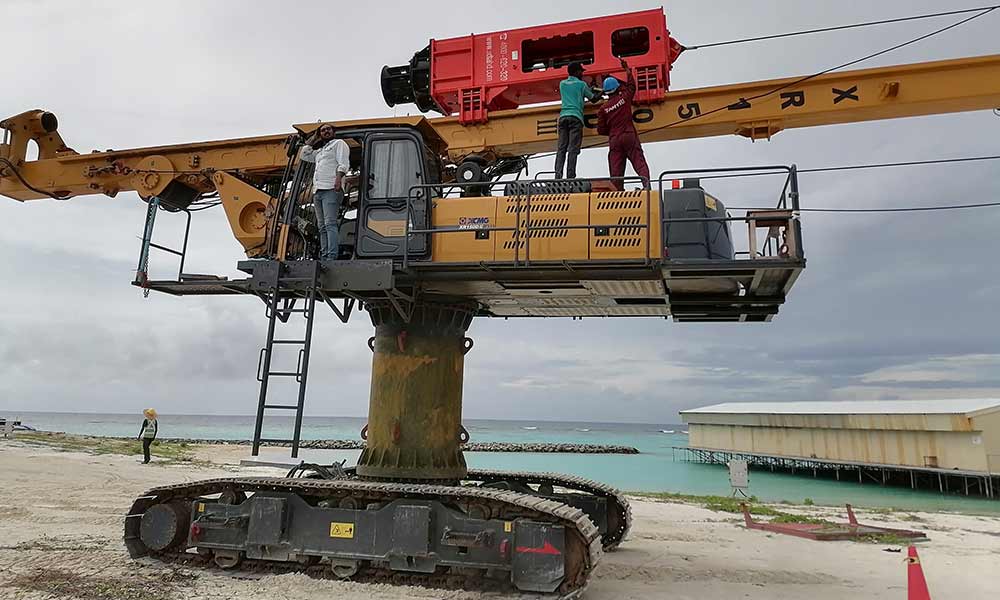

| HH84 | 7.0 | 84 | 4.3 | 11.9 | 20 | ~350 | 330/600 | Single cylinder |

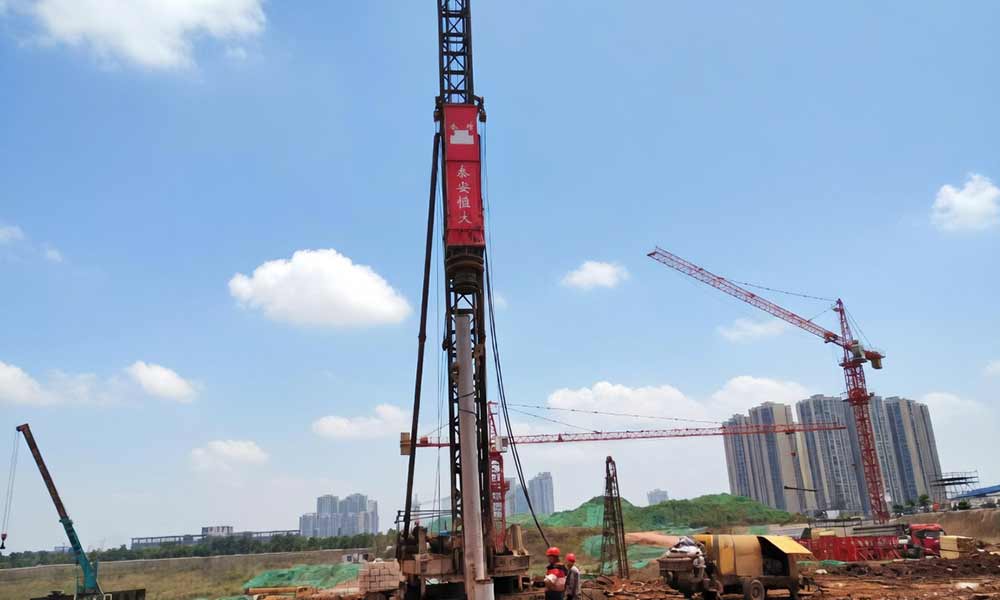

| HH60 | 5.0 | 60 | 3.9 | 8.8 | 20 | ~350 | 330/600 | Single cylinder |

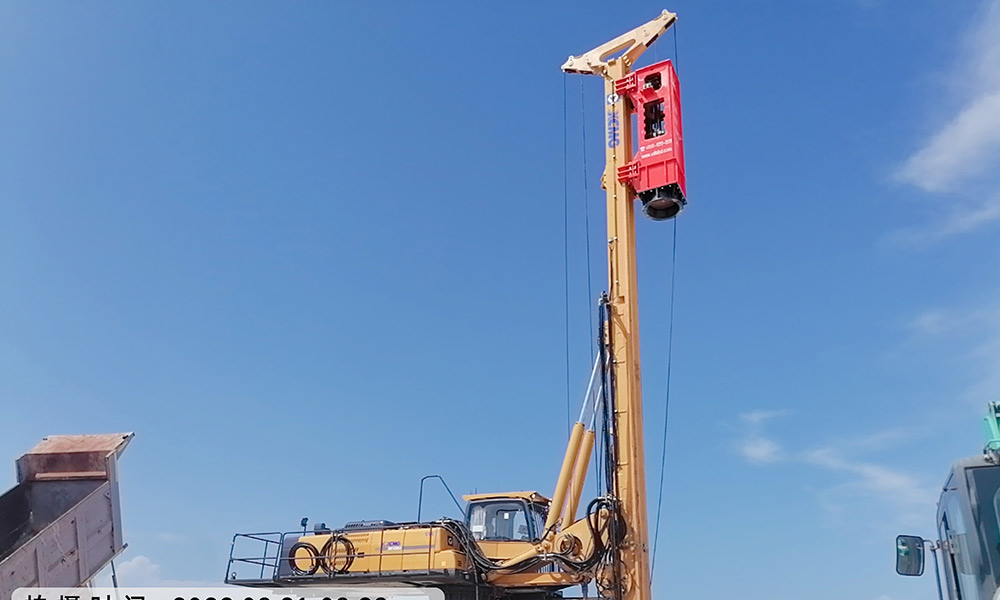

| HH42 | 3.5 | 42 | 3.7 | 6.5 | 16 | ~160 | 330/600 | Single cylinder |
| HH36 | 3.0 | 36 | 3.7 | 6.0 | 16 | ~160 | 330/600 | Single cylinder |

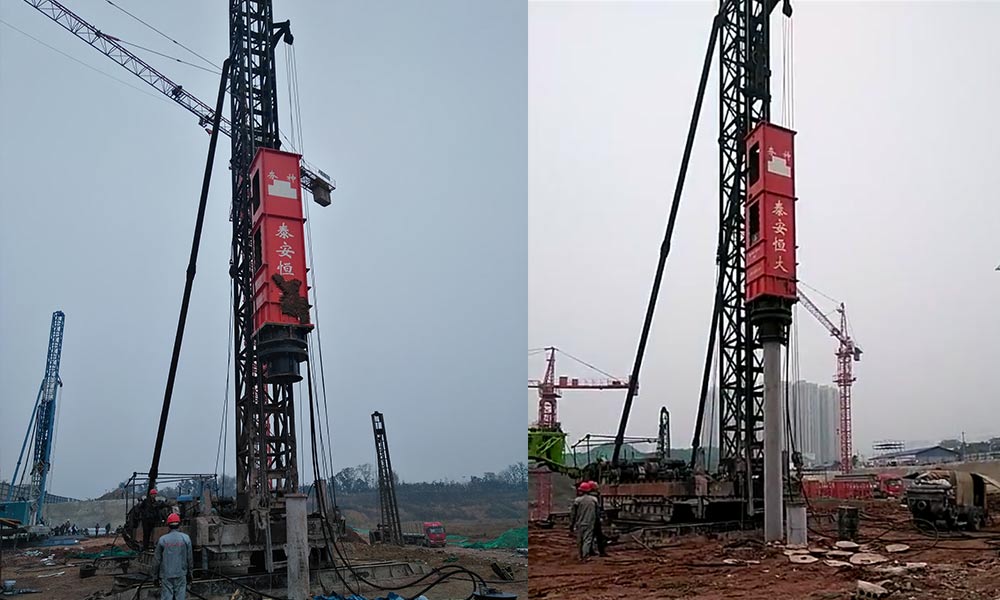

| HH16 | 1.6 | 16 | 3.2 | 2.7 | 12 | ~130 | 330/600 | Single cylinder |
| HH12 | 1.2 | 12 | 3.2 | 2.3 | 12 | ~130 | - | Single cylinder |
*Total height and working mass are without pile cap.
It is a new type of pile driver, which is powered by oil pressure, and can adjust the hydraulic pressure according to the quality of the stratum soil to achieve the appropriate impact force. Small and medium hydraulic pile drivers are often used in highway guardrail piling and highway guardrail construction.
A hydraulic pile hammer uses hydraulic power to lift and release or accelerate a ram, transferring impact energy into the pile head so the pile can penetrate soil and reach the required design depth. Compared with combustion-based systems, hydraulic hammers offer better controllability, cleaner operation and broader project adaptability.
The hammer operates through a precision hydraulic cylinder system that raises the ram and controls the downstroke. Modern hydraulic pile hammers can regulate stroke height, blow rate and impact energy in real time, helping improve driving efficiency and reduce the risk of pile damage in complex soil conditions.
Selecting the right hydraulic piling hammer requires evaluating pile type, pile dimensions, soil profile, required energy per blow, target penetration depth, working environment and carrier or power pack compatibility. Matching hammer energy to the pile and the geotechnical condition is essential for productivity, pile integrity and jobsite safety.
HPH series hydraulic pile hammers are commonly evaluated for bridge foundations, marine piles, port terminals, industrial plants, high-rise buildings, energy projects, retaining walls and sheet pile works where controllable impact energy and dependable performance are essential.
Comprehensive range of piling hammers for various pile driving requirements
HPH piling hammers are ideal for deep foundation, marine, retaining wall and industrial pile driving projects
Pile driving for bridge foundations
Marine foundation construction
Foundation pile driving
Heavy structure foundations
Direct answers designed for engineers, EPC teams, foundation contractors and buyers comparing pile driving equipment.
A hydraulic pile hammer uses hydraulic power to control the ram movement and impact energy, while a diesel hammer relies on combustion. Hydraulic systems generally offer more controllable energy output, steadier performance, lower emissions and better suitability for projects that need accurate driving control.
Hydraulic piling hammers can be used for steel piles, concrete piles, pipe piles and sheet piles, provided the hammer energy, helmet arrangement and project conditions are matched correctly to the pile system.
They are widely used in bridge projects, ports, docks, marine structures, high-rise buildings, industrial plants, retaining walls, cofferdams and selected energy infrastructure projects that require reliable deep foundation installation.
Model selection depends on pile type, pile size, soil resistance, design depth, required energy per blow, production target and equipment compatibility. Larger and higher-energy models are typically chosen for bigger piles, harder ground and heavier-duty projects.
Get expert consultation on selecting the right HPH model for your project.
